在液冷散热系统中，Manifold是机柜核心冷媒分配单元，主要负责为各散热节点实现冷媒均衡输送与精准分流调配。随着数据中心朝着规模化、集约化方向升级发展，行业对液冷设备的快速装配、批量部署、便捷运维提出了更高要求。在此背景下，中航光电推出盲插式Manifold产品，具备分液均衡、运维便捷等核心优势，能够为液冷系统高效、平稳、可靠运行提供专业互连解决方案。
In a liquid cooling system, the manifold serves as the core refrigerant distribution unit inside the cabinet. It is mainly responsible for the balanced delivery and precise distribution of refrigerant to each heat dissipation node. As data centers evolve toward large-scale and intensive development, the industry has raised higher requirements for the rapid assembly, bulk deployment and convenient operation and maintenance of liquid cooling equipment. Against this backdrop, JONHON has launched the blind-mate manifold. Featuring balanced refrigerant distribution and convenient maintenance, it delivers a professional interconnect solution for the efficient, stable and reliable operation of liquid cooling systems.
产品简介
中航光电盲插式Manifold，专为高算力数据中心液冷机柜冷媒分配场景量身打造，破解传统分液部件装配繁琐、运维不便痛点，赋能高算力液冷系统高效部署与极简运维。
JONHON blind-mate manifold is designed for refrigerant distribution in liquid cooling cabinets of high-compute data centers. It addresses the pain points of cumbersome assembly and inconvenient maintenance of traditional fluid distribution components, enabling efficient deployment and streamlined operation of high-compute liquid cooling systems.

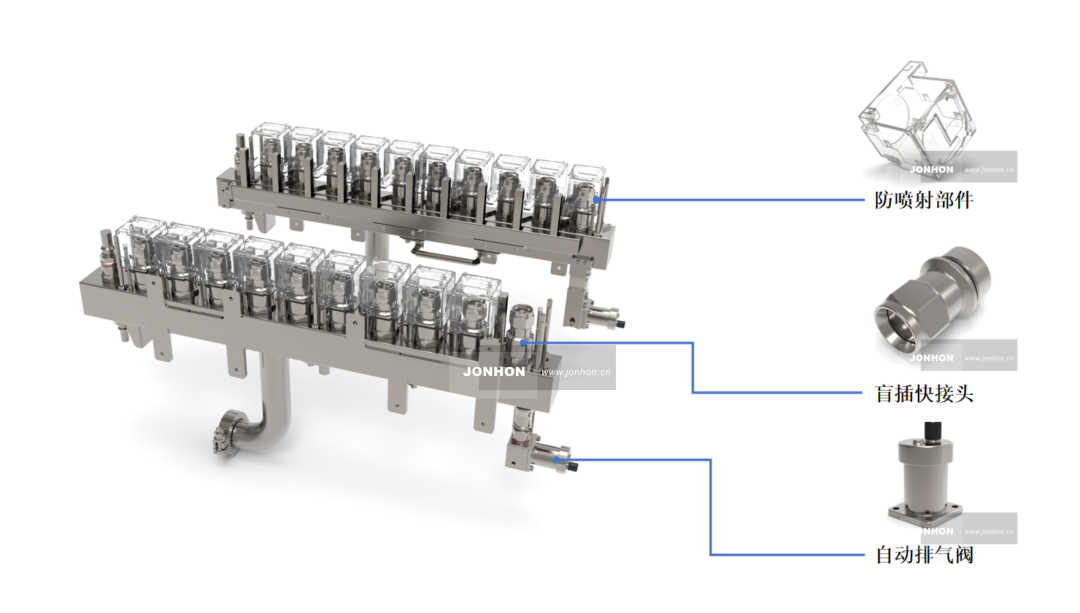

「盲插式Manifold产品」
产品亮点

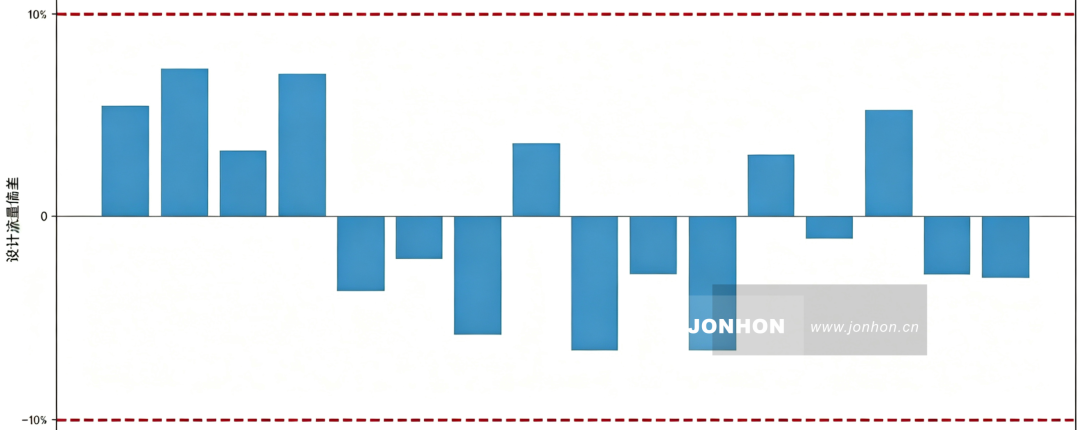

1.分液均衡可控：通过结构优化、仿真验算与差异化定制设计，适配各类液冷机柜工况，实现各散热节点流量偏差控制在10%以内，保障整机散热均匀高效。Balanced & Controllable Refrigerant Distribution
With structural optimization, simulation analysis and differentiated customized design, it adapts to various working conditions of liquid cooling cabinets. The flow deviation among heat dissipation nodes is controlled within 10%, ensuring uniform and efficient heat dissipation for the whole system.
2.严苛测试稳定可靠：按需匹配成熟焊接成型工艺，全系列历经密封、均流、清洁度等性能测试，及跌落、盐雾、湿热、温循、老化等可靠性试验，确保产品品质稳固耐用。Strict Testing & High Reliability
Adopting tailored mature welding and forming processes, all product series have passed performance tests including tightness, flow uniformity and cleanliness, as well as reliability tests such as drop, salt spray, damp heat, temperature cycling and aging, ensuring stable and durable product quality.

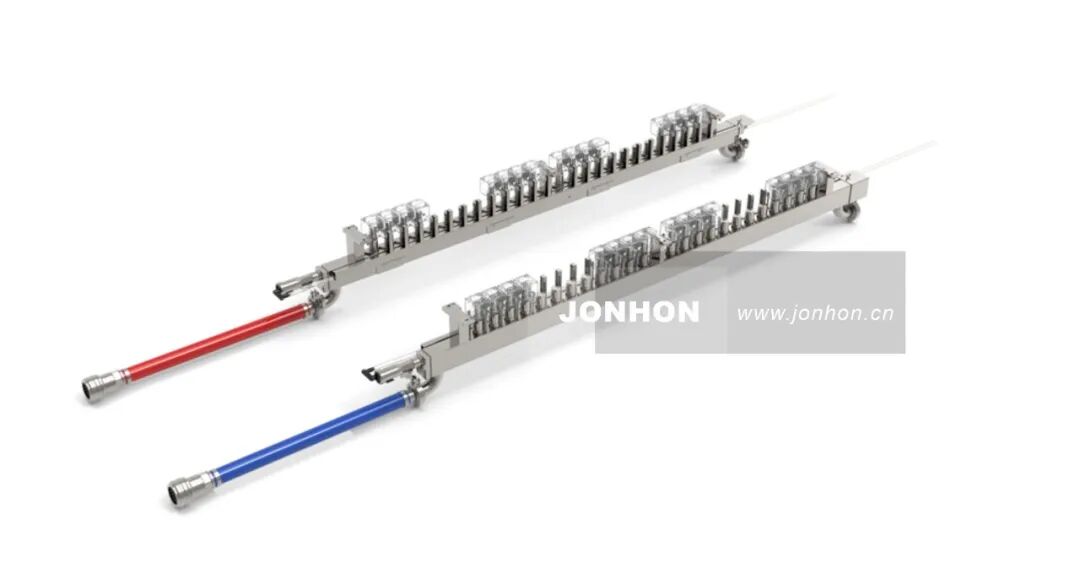

3.精密成型盲插精准：关键结构采用一体化精密成型工艺，配备专业高精度检测设备完成尺寸全检校准，实现液冷节点快速对位、自动精准盲插，装配省心，有效提升运维效率。
Precision Forming & Accurate Blind Mating
Key structures adopt integrated precision forming technology. Supported by professional high-precision testing equipment for full dimensional inspection and calibration, it enables fast alignment and automatic accurate blind mating of liquid cooling nodes, simplifying assembly and significantly improving O&M efficiency.
4.全链配套一站式交付：可同步配套自研液冷连接器、盲插浮动模块、防喷溅组件、自动排气阀等核心零部件，实现一站式供货，保障品质统一、交付高效及时。
Full-range Supporting & One-Stop Delivery
JONHON can provide self-developed core components including liquid cooling connectors, blind-mate floating modules, splash-proof parts and automatic exhaust valves. One-stop supply guarantees consistent quality and timely, efficient delivery.
未来，中航光电将紧跟数据中心液冷化、高算力发展趋势，深耕液冷系统核心部件领域，依托自身技术积淀与全链配套能力，助力液冷散热方案不断优化升级，为高算力场景发展注入持久动力。
