随着新能源汽车市场渗透率突破45%，产业在快速变革中面临核心挑战：原材料成本压力与高压连接器可靠性升级的技术需求并存。在此背景下，轻量化、低成本的铝导体应用已成为不可逆转的行业趋势，在800V高压平台与大电流快充技术快速普及的背景下，铝线与铝排之间的高效转接、稳定导电、防水防松已成为行业的核心选项。为助力连接器快速发展，响应用户心声，提升客户体验感，瑞可达重磅推出RH3500系列转接盒，助力行业铝导体应用技术革新，在载流能力、兼容匹配、降本增效等方面实现突破。
With the market penetration rate of new energy vehicles exceeding 45%, the industry is undergoing rapid transformation and facing core challenges: the pressure of raw material costs coexists with the technical demand for upgrading the reliability of high-voltage connectors. Against this backdrop, the application of lightweight and low-cost aluminum conductors has become an irreversible industry trend. In the context of the rapid popularization of 800V high-voltage platforms and high-current fast charging technologies, efficient connection, stable conduction, water resistance and anti-loosening performance between aluminum wires and aluminum busbar have become the core requirements for the industry. To support the rapid development of connectors, respond to user needs, and enhance customer experience, Recodeal has launched the RH3500 series of adapter boxes, promoting technological innovation of aluminum conductor application in the industry and achieving breakthroughs in current-carrying capacity, compatibility and matching, cost reduction, and efficiency improvement.
01
产品简介
Product Introduction
RH3500系列转接盒采用“A”+“B”布局设计，实现“正极”线束和“负极”线束可单独制作，分别组装完成后再装配在一起的结构，专为乘用车充电座至BDU（电池分配单元）之间的铝排-铝线高效转接而设计，旨在通过技术革新，解决导电、防护与装配的核心难题，全面助力行业降本增效与可靠升级。RH3500系列转接盒最大可兼容210mm2铝排与210mm2铝线超声波焊接。满足IP68、IP6K9K防护要求。支持多种安装方式，可根据客户安装布置匹配。为客户带来全方位的使用体验。
The RH3500 series adapter box adopts an "A"+"B" layout design, enabling separate fabrication of positive and negative wiring harnesses. The two harnesses are assembled individually and then integrated as a complete structure. It is specifically designed for efficient aluminum busbar - aluminum wire transition from the charging inlets to the BDU (Battery Distribution Unit) in passenger vehicles. Through technological innovation, it aims to solve the core challenges of conductivity, protection, and assembly, comprehensively supporting cost reduction, efficiency improvement, and reliable upgrades in the industry. The RH3500 series adapter box can accommodate ultrasonic welding of up to 210mm2 aluminum busbar and 210mm2 aluminum wires. It meets IP68 and IP6K9K protection requirements. It supports multiple installation methods and can be matched according to the customer''s installation layout. It brings a comprehensive user experience to customers.
02
产品优势
Product Advantages

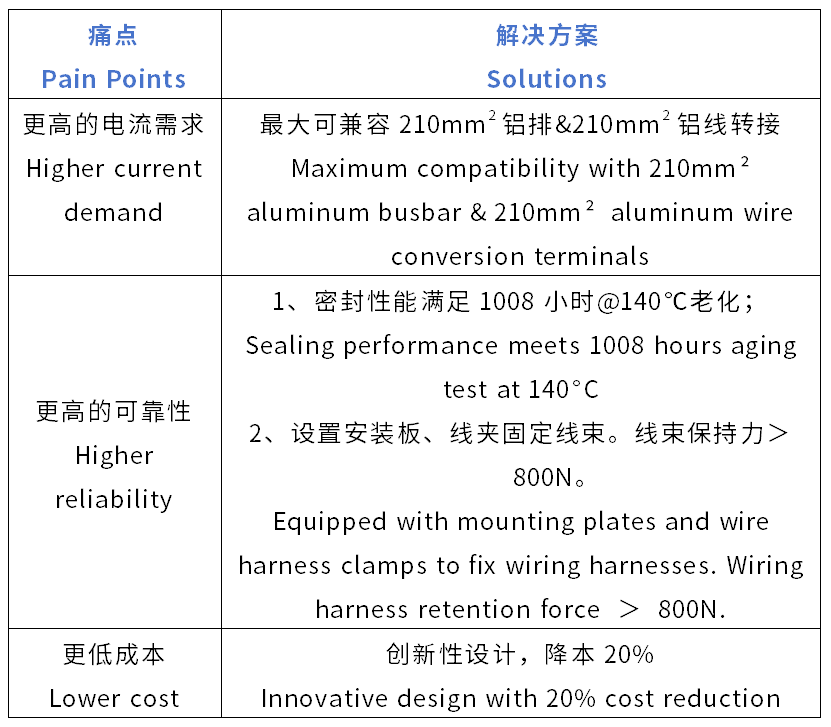

更高防护性/Higher Protection
全方位更高防护性能设计，具备防凝露、IP68、IP6K9K等性能，在大电流、高电压使用时，具有更高的可靠性，为整车和用户提供更硬核的安全保障。
Designed with all-round enhanced protection performance, it features anti-condensation, IP68, IP6K9K and other capabilities. It delivers higher reliability under high current and high voltage operating conditions, providing robust safety assurance for the entire vehicle and users.
更高载流/Higher Current
产品的额定电压为1000V，可兼容120mm2-210mm2铝排铝线，完美契合大功率充放电的需求，为整车发展提供关键技术支持。相比较传统转接盒，RH3500转接盒适配线径更大，具有更高载流。同时叠加铝排铝线焊接技术，提升连接器载流能力的同时，可带来约20%的线束总成成本节约。
The rated voltage of the product is 1000V, compatible with aluminum busbar and aluminum wires ranging from 120mm2 to 210mm2. It perfectly meets the demands of high-power charging and discharging and provides key technical support for the development of complete vehicles. Compared with traditional adapter boxes, the RH3500 adapter box supports a larger wire diameter and features higher current-carrying capacity. Meanwhile, with the adoption of aluminum busbar and aluminum wire welding technology, it enhances the current-carrying capability of connectors and reduces the overall cost of wire harness assemblies by approximately 20%.
更多组合/More Combinations
·
·
更多兼容/Greater Compatibility
RH3500转接盒能够更好迎合主机厂降本、减重的需求，实现铝代铜应用，完美搭载多种规格线缆，可铜可铝，还可根据主机厂的安装空间，进行匹配，灵活选用。
The RH3500 adapter box effectively addresses OEMs'' requirements for cost reduction and weight reduction by enabling the application of aluminum instead of copper. It is perfectly compatible with wire harness of various specifications, supporting both copper and aluminum wires. Additionally, it can be customized and flexibly selected according to the installation space of OEMs.
更低成本/Lower Cost
以塑代钢，通过创新性设计，减少零件数量，结构简单可靠，轻松面对严酷运行工况，同载流情况下，成本降低20%。
Replace steel with plastic, reduce the number of parts through innovative design, feature a simple and reliable structure, easily adapt to harsh operating conditions, and cut costs by 20% under the same current-carrying condition..
更加可靠/More Reliable
通过USCAR 37/USCAR 2的V2高振动等级测试，满足1008小时、高温140℃的老化气密测试要求，轻松面对复杂路况的严苛使用环境，杜绝整车瞬断风险，确保在整车全生命周期内的可靠连接。
Passed the V2 high vibration level tests of USCAR 37 and USCAR 2, and meets the requirements of 1008-hour aging and airtight tests at a high temperature of 140°C. It easily adapts to the harsh service environments of complex road conditions, eliminates the risk of vehicle circuit instantaneous disconnection, and ensures reliable connection throughout the full life cycle of the complete vehicle.
03

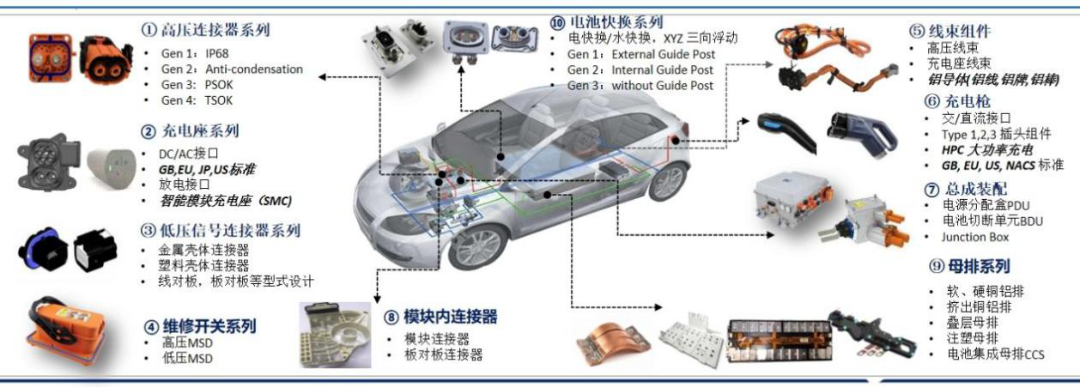

产品应用
Product Applications
RH3500系列转接盒专为新能源汽车大截面铝排与铝线转接而生，适用于充电座、电池包、电气系统之间的电流传输、保证整车功率互联，为铝材在新能源汽车的运用提供可靠方案，贯穿全行业降本增效的重要使命。
The RH3500 Series Adapter Box is specifically designed for transitioning between large-cross-section aluminum busbar and aluminum wires in new energy vehicles. It facilitates current transmission between charging inlets, battery packs, and electrical systems, ensuring seamless power interconnection throughout the vehicle. This solution provides a reliable pathway for aluminum applications in new energy vehicles, fulfilling the industry-wide mission of reducing costs and enhancing efficiency.
